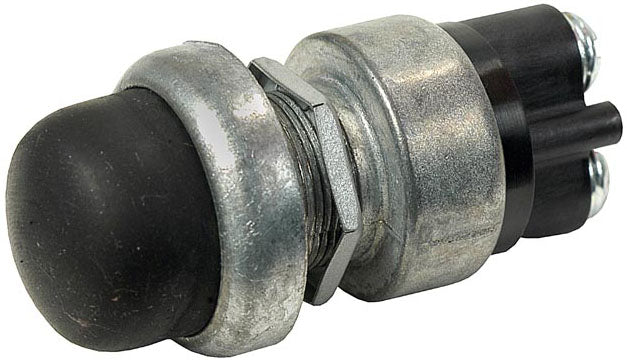

MOMENTARY PUSH BUTTON

Off / Momentary On Push Button Switch

• Cap and face nut to seal out weather and dust
• Mounting stem: 5/8 - 32 thread
• Panels: Up to 1/4 inch thick
• Contact rating 14 VDC: Make 70 amps, break 20 amps inductive load
• Current rating 24 VDC: Make 35 amps, break 10 amps inductive load
• Silver plated contacts
• Flush terminal screws in molded insulator
• Housing rolled over insulator to keep out dust and moisture
• Hex black nut
• Black molded plunger
• Overall length 1 - 13/16 inch
• Housing diameter 15/16 inch
